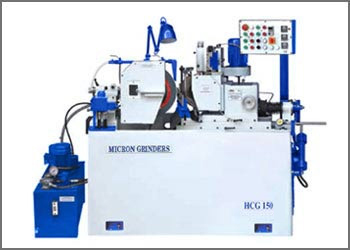

Auto Plunge Cut Machine
Item Code - HCG 150
We have with us more than 15 years of experience and modern manufacturing facilities to meet the demands of Auto Plunge Cut Machine HCG 150. With our expertise in delivering customers with feed grinding systems as per international standards, we provide these for both through-feed & in-feed grinding processes. Centerless Surface Grinder has been specialized in producing surface grinders.
We offer these in different working capacities including max opening between new vehicles of 1-100 mm, max width in feed grinding of 150 mm. Further, the specifications of grinding wheel include dimension of 400 mm, width of 150mm, bore of 203.2 mm and speed of 1600 R.P.M. (Min), 1800 R.P.M. (Max) and 100 R.P.M. (Max). The overall dimensions & weight of the system include length of 2250mm, width of 1325mm, height of 1750mm and net weight approx of 2100 kgs. Some of the features and technical specification of the product is updated below.
Salient Features
- Designed for both through-feed & in-feed grinding
- Separate motorized lubrication system for grinding wheel head with safety float switch
- Dressing slides hardened ground and protected with way wipers
- Minor taper adjustment without dressing
- Microfeed-fine adjustment for depth of cut
- Template truing devices fitted with linear slides
- Grinding wheel duly balanced and easy to load and unload
Technical Specifications
|
Capacity
| Max. opening
between new vehicles |
1-100 mm |
| Max. width in feed
grinding |
150 mm |
Grinding Wheel
| Dimension |
400 mm |
| Width |
150mm |
| Bore |
203.2 mm |
| Speed |
1600 R.P.M. (Min)
|
|
1800 R.P.M. (Max) |
|
100 R.P.M. (Max.)
|
Regulating Wheel
| Diameter |
250 mm |
| Width |
150 mm |
| Bore |
110 mm |
| Recess both sides |
145 x 30 mm |
| Speed |
20 R.P.M. (Min.) |
|
40 R.P.M. (Med.) |
|
100 R.P.M. (Max.)
|
| Tilting Angle |
+5°/-2° |
| Swivelling Angle
|
±1° |
|
Power Requirements
| Grinding Wheel
Motor |
7.5 KW/HP |
| Regulating Wheel
Motor |
0.75 KW/HP |
| Coolant Pump Motor |
0.18 KW/HP |
| Lubrication Pump |
0.16 KW/HP |
| Hydraulic Unit
Motor |
0.75 KW/HP |
Dimensions & Weight
| Length |
2250mm |
| Width |
1325mm |
| Height |
1750mm |
| Net Weight Approx. |
2100 kgs |
|
|
