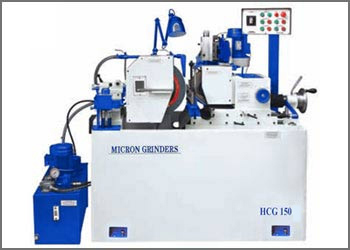

Centerless Grinder
Item Code - HCG-150
We have with us rich experience in successfully handling the demands of
Centerless Grinder HCG-150. These systems are developed for handling the
through-feed & in-feed grinding process. For safe handling of the
process, the system is provided with separate motorized lubrication
system for grinding wheel head that also comes supported by safety float
switch. Here, our expertise lies in making the system available in max
opening between new vehicles of 1-100 mm and max width in feed grinding
of 150 mm.
The grinding wheel comes with working speed of 1600 R.P.M. (Min), 1800
R.P.M. (Max) and 100 R.P.M. (Max.) and regulating wheel comes in
diameter of 250 mm with width of 150 mm and bore of 110 mm. Further, the
system also features micro feed-fine adjustment for depth of cut as well
as duly balanced grinding wheel for easy loading and unloading. Some of
the features and technical specification of the product is updated
below. Surface Grinding Machine are offered to our valued clients that are available in different customized and standard specifications.
Salient Features
- Designed for both through-feed & in-feed grinding
- Separate motorized lubrication system for grinding wheel head
with safety float switch
- Dressing slides hardened ground and protected with way wipers
- Minor taper adjustment without dressing
- Microfeed-fine adjustment for depth of cut
- Template truing devices fitted with linear slides
- Grinding wheel duly balanced and easy to load and unload
Technical Specifications
|
Capacity
| Max. opening
between new vehicles |
1-100 mm |
| Max. width in feed
grinding |
150 mm |
Grinding Wheel
| Dimension |
400 mm |
| Width |
150mm |
| Bore |
203.2 mm |
| Speed |
1600 R.P.M. (Min)
|
|
1800 R.P.M. (Max) |
|
100 R.P.M. (Max.)
|
Regulating Wheel
| Diameter |
250 mm |
| Width |
150 mm |
| Bore |
110 mm |
| Recess both sides |
145 x 30 mm |
| Speed |
20 R.P.M. (Min.) |
|
40 R.P.M. (Med.) |
|
100 R.P.M. (Max.)
|
| Tilting Angle |
+5°/-2° |
| Swivelling Angle
|
±1° |
|
Power Requirements
| Grinding Wheel
Motor |
7.5 KW/HP |
| Regulating Wheel
Motor |
0.75 KW/HP |
| Coolant Pump Motor |
0.18 KW/HP |
| Lubrication Pump |
0.16 KW/HP |
| Hydraulic Unit
Motor |
0.75 KW/HP |
Dimensions & Weight
| Length |
2250mm |
| Width |
1325mm |
| Height |
1750mm |
| Net Weight Approx. |
2100 kgs |
|
|
