Hydraulic Centerless Grinder |
|

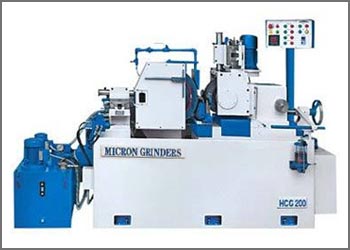

Hydraulic Centerless Grinder
Item Code - HCG-200
We offers Hydraulic Centerless Grinder having variant like Centerless
Grinder HCG-200 & Centerless Grinder - HCG 250 made available by us
are simple and economical in operations and include Cylindrical Grinding Machine these are designed for both in-feed grinding and through-feed
applications; these precision grinding machines also come with
regulating wheel variable speed drive through AC motor so as to ensure
superior process operations.
Hydraulic Centerless Grinder is User for
- Shouldered Pins
- Transmission Bushings
- Ceramic Shafts For Circulator Pumpsused in Home
- Heating
- Valve Seal Inserts
- Aerospace Fasteners
- Dowel Pins
Salient Features
Our Hydraulic Centerless Grinder is
most economical and very simple in operation. And is designed for both through- feed & infeed grinding,
precision grinding machines, hardened and ground screw threads as well
as that of spindles. Regulating Wheel variable speed drive through AC
motor, Minor taper adjustment without dressing.
Microfeed-fine adjustment for depth of cut. Grinding Wheel Head fitted
with with high precision (ISO-P4) antifriction bearings in grinding
wheel head for running accuracy and long life. Template truing devices
fitted with linear slides. Magnetic Coolant Separator provided with the
machine. The Electrical Controls in separate cabinet for easy
maintenance /repair. The Grinding Wheel & Regulating Wheel duly
balanced.
| Standard
Equipments |
Extra
Attachments |
| One Grinding Wheel
|
Spare Wheel Flange
|
| One Regulating
Wheel |
Vibratory Feeder |
| Micro feed for
fine adjustment of cut. |
Wheel Balancing
Stand with Arbour |
| Variable Speed
through AC Motor for Regulating Speed with AC Drive |
Bar Feeder for
long Bars Grinding |
| Minor Taper
adjustment without dressing of wheels. |
Special Work Rest
Blade |
| Magnetic coolant
separator. |
Anti-Vibration
Pads |
| Star delta Motor
starter for grinding wheel head. |
Template Truing
slides for profile dressing |
| Coolant pump with
tank |
Addition Work Rest
Blade |
| Grinding Wheel
Pulley Puller |
Automatic infeed
Grinding System |
| Splash Guards |
Auto ejector &lifter |
| Grinding Wheel &
Regulating Wheel Nut Spanner |
Automatic
Balancing of Grinding Wheel |
| One Rotary Dresser
Plunger |
|
| Toolkit |
|
| Two Truing Devices
|
|
| Hand Pump
Lubrications for slides |
|
| Grinding Wheel
Puller |
|
| Work Rest Blade
for Through Grinding |
|
| Machine Lamp |
|
Technical Specifications
|
Grinding Capacity
| Max. opening
between new vehicles |
2 to 125mm |
| Max. width in feed
grinding |
200mm |
Grinding Wheel
| Diameter |
500mm |
| Width |
200mm |
| Bore |
300mm |
| Speed |
1400 R.P.M. |
Regulating Wheel
| Diameter |
300mm |
| Width |
200mm |
| Bore |
1125mm |
| Speed |
Variable |
| Tilting Angle |
5°
-2° |
|
Power Requirements
| Grinding Wheel
Motor |
20HP |
| Regulating Wheel
Motor |
2HP |
| Coolant Pump Motor |
0.5HP |
| Hydraulic Motor |
1HP |
| Magnetic Separator |
0.25 HP |
Dimensions & Weight
| Length |
2850mm |
| Width |
1700mm |
| Height |
1650mm |
| Net Weight Approx. |
3750 Kgs |
|
|
